    Single Phase AC EV Charging Socket Type 1 EV Charging Adapter 240V 16A 32A

    Ask Lasest Price
    Brand Name : Evoyage
    Model Number : EV32AP
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, Paypal, Alipay, Cash
    Supply Ability : 10000 Piece/Pieces per Week
    Delivery Time : 7-15 Working days
    • Product Details
    • Company Profile

    Single Phase AC EV Charging Socket Type 1 EV Charging Adapter 240V 16A 32A

    EV Charging Socket, Single Phase New Energy Vehicles AC Socket Type 1 EV Charging Adapter 240V 16A 32A Universal CE UL TUV SAE J1772 Approved

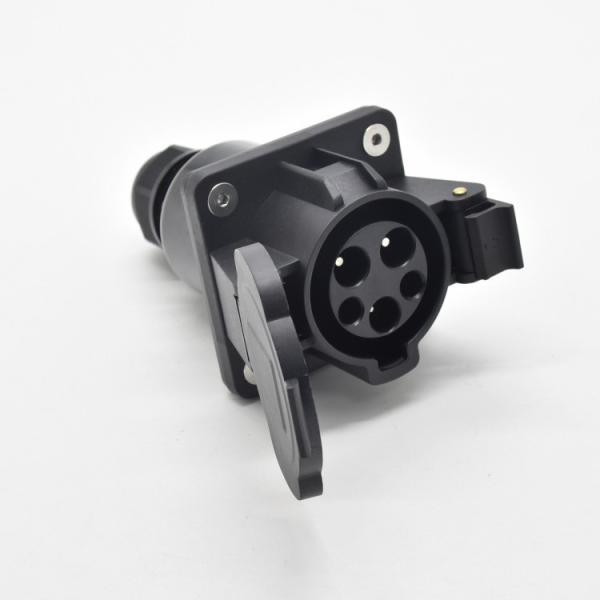

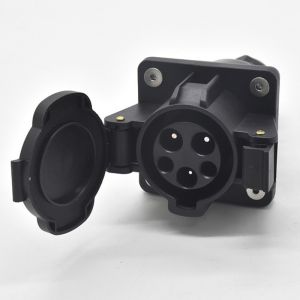

    16A 32A Type 1 EV AC Charging Inlet Socket Vehicle Side


    • Rated current: 16A/32A
    • Rated voltage: 110V-240V AC
    • Operation Temp.:-30℃ ~ + 50℃
    • IP protection class: IP 54 ( working condition)
    • Product description: This Type 1 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the SAEJ1772 Type 1 Electric Vehicle.

    Feature:

    • Safe to Use: Type 1 AC EV socket is highly in line with CE, TUV, SAE J1772 approved for maximum security, without worrying about any issues.

    • Powerful Protection: EV charging connector DSIEC2f EV16S is professionally designed for greatly protection up to IP54 rate in working condition for using at ease.

    • Higher Durability: EV socket adopts TPE sheath which is highly insulated and aging resistant, and improve the socket bending time and wear resistance.

    • Professional Design: Electric vehicle charging connector is Type 1, single phase, 240V, 16A 32A rated current, UL94‑V‑0 rating flame retardant, stable and efficient.

    • Universal Connector: The electric vehicle socket is universal for various kinds of new energy vehicles, especially yours, purchase without worry.


    Number of PhasesAC
    Rated Voltage for Power Contacts240V/,Single Phase
    Rated Current for Power Contacts16A / 32A
    StandardSAE J1772 Standard Type 1 Socket
    Insulation resistance>1000MΩ (DC500V)
    Terminal temperature rise<50K
    Withstand Voltage2000V
    Mechanical Lifeno-load plug in / plug out > 10000 times
    MateriaThermoplastic, Flame retardant grade UL94-0;
    Pin: Cooper alloy, sliver + thermoplastic on the top
    IP Protection ClassIP 54
